Product Details

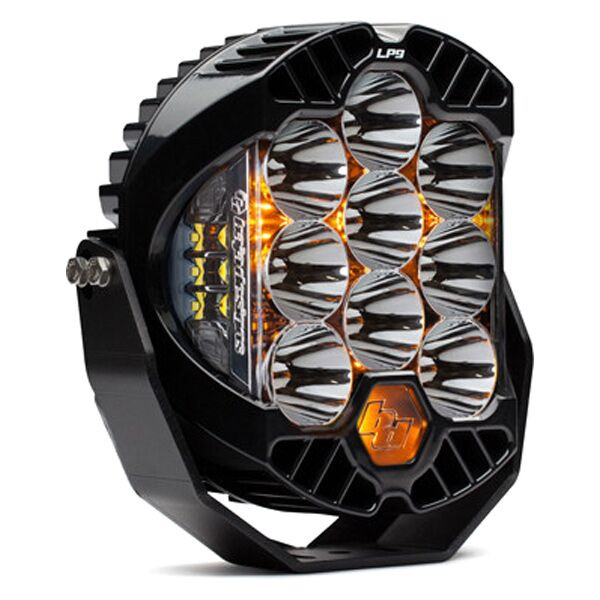

Universal LP9™ Racer Edition 8" 105W/2.8W Round High Speed Spot Beam LED Light by Baja Designs®. 1 Piece, 9-LED. Black housing. 9-36V. 7.6A; Backlight: 0.2A. Lumens: 11,025lm; Secondary lumens: 2,280lm. 5000K. With hard coated polycarbonate lens. Though the design that was inspired by Baja Designs’ legendary 8" La Paz HID; The LP9 Racer Edition LED Pod features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes nine forward-projecting LEDS to produce 11,025 Lumens at 105W, and six LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5W per side. The IPT sports an incredible 200-degree spread of usable light. The housing provides exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 easily takes care of all your lighting needs.
Specifications
| Size: 8" |
| Watts (per kit): 105W/2.8W |
| LEDs/bulbs quantity: 9-LED |
| Beam pattern: high speed spot beam |
| Bulb type: LED |
| Series: LP9™ |
| Housing color: black |
| Material: hard anodized machined aluminum |
| Shape: round |
| Voltage: 9-36V |
| Amperage: 7.6A; Backlight: 0.2A |
| Lumens: 11,025lm; Secondary lumens: 2,280lm |
| Color temperature: 5000K |
| Dimension: 8" L x 8" H x 3.25" D |
| Connector type: dt06-4s deutsch connector |
| LED life expectancy: 49,930 hours |
| Exceeds MIL-STD810G (Mil-Spec Testing) |
| Built-in overvoltage protection |
| IP69K (waterproof up to 9ft and pressure washable) |
| IK10 compliant (Mechanical Impact Testing) |
Features
- Limited lifetime warranty – complete purchase protection
- uService – replaceable lenses and optics
- ClearView – all the light, right where you need it
- MoistureBlock – waterproof, rain proof, submersible
- CopperDrive – only LED driven at 100%
- 5000K Daylight – less driver fatigue, natural color
Installation
Dress up your prized off-road vehicle with this top-grade Baja Designs LP9 Racer Edition LED light to tackle the harshest off-road trails with maximum safety even in the darkest of nights. The LP9 uses 9 forward projecting LEDs to produce 11,025 Lumens at 105 watts and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 Lumens at 10.5 watts per side. The IPT provides an incredible 200-degree spread of usable light. The housing is designed using Direct Ducted Cooling which allows air to travel from the front of the housing to the rear, thus providing exceptional heat dispersion. And with a day-time running light, as well as low and high power mode, the LP9 will fulfill all your lighting needs. The Racer Edition configuration is designed specifically for the demands of high-speed driving. The LP9 Racer Edition LED light has the same power draw as the standard LP9, but produces a much tighter pattern, providing higher visibility at greater distances.
This light features a high-speed spot beam pattern, a longer and narrower 6-degree beam focus for illumination further down the trail or road. The spot pattern is designed to be used in conjunction with additional wide driving and/or driving/combo beam lights.
Baja Designs® was founded more than 25 years ago with infatuation and thirst for off-roading. This performance-driven company engineers and manufactures American made products using only the finest components available. From the engineering phase led by its founder and lead engineer Alan Roach to the finished result, Baja Designs breathes passion, quality, and performance. Offering cutting-edge LED lighting solutions for elite race vehicles, special forces military vehicles, and everything in between - it is no surprise that Baja Designs has become known worldwide as “The Scientists of Lighting.”
