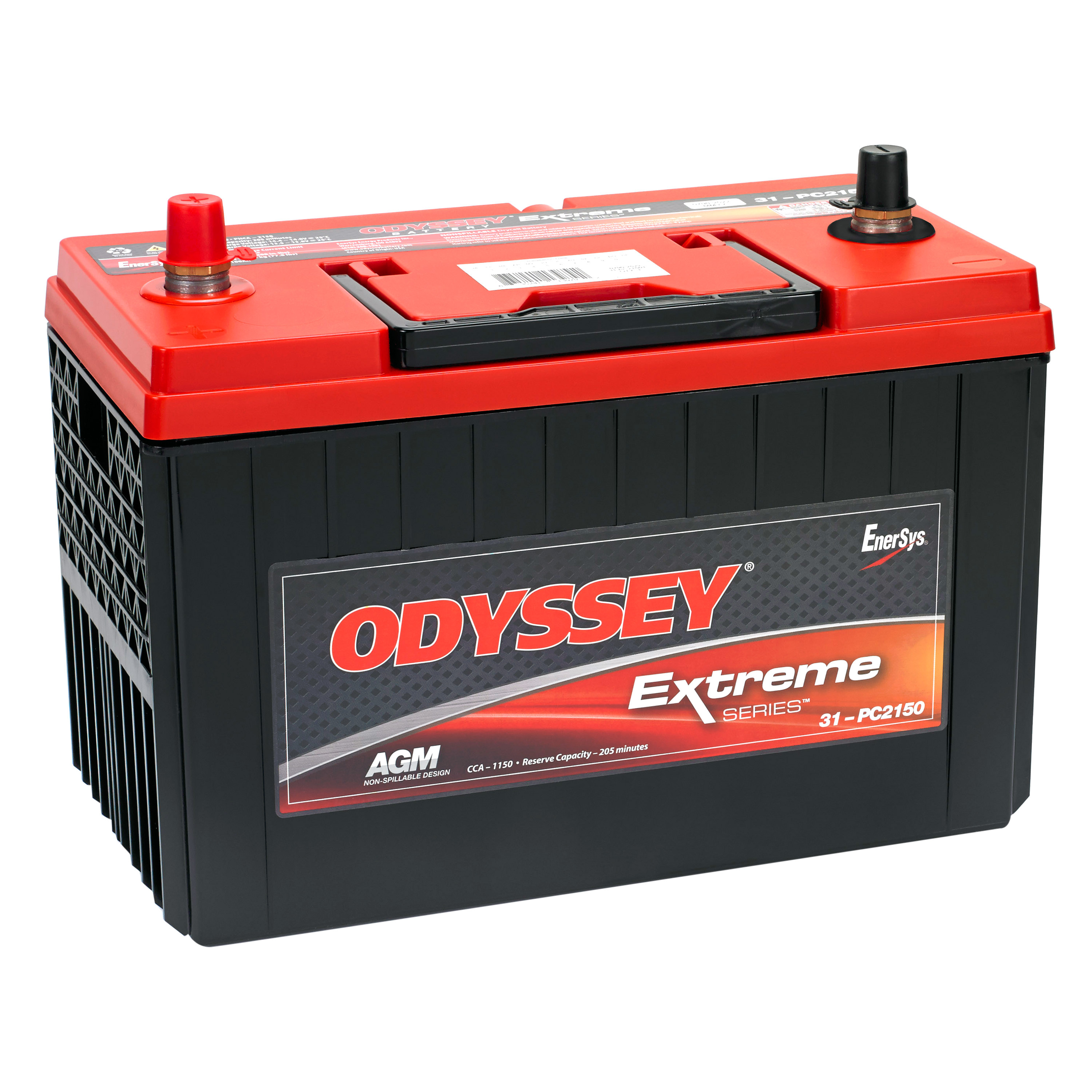

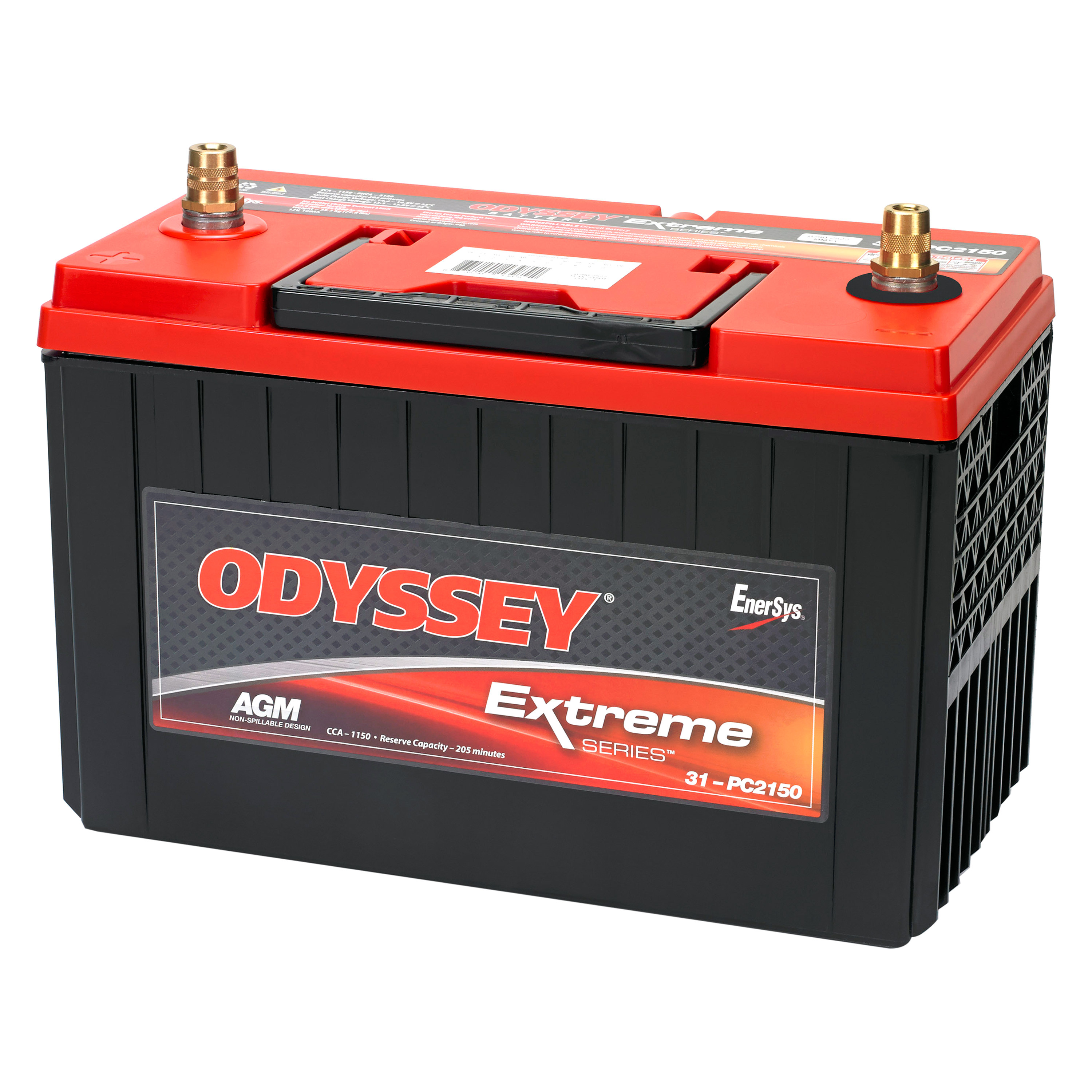

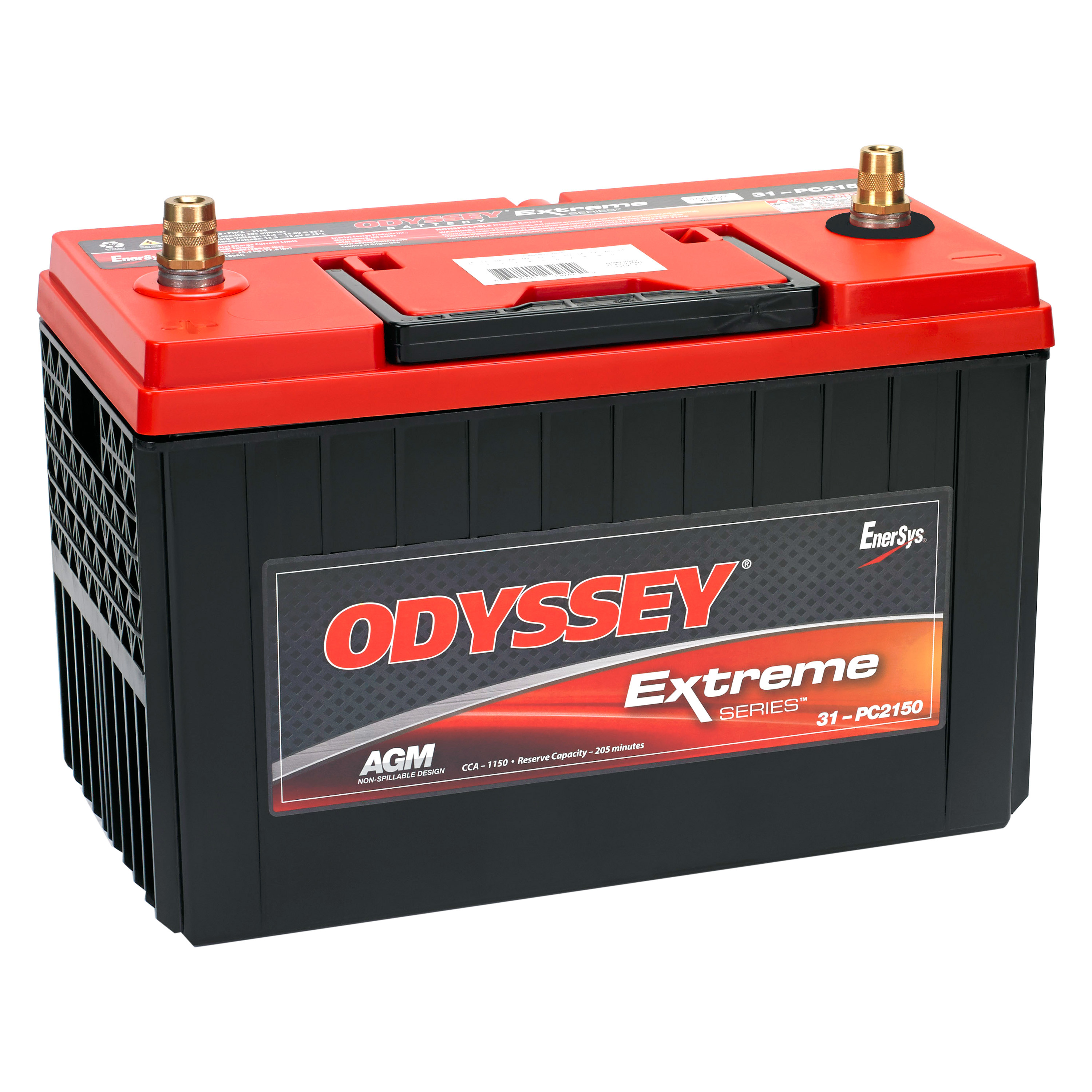

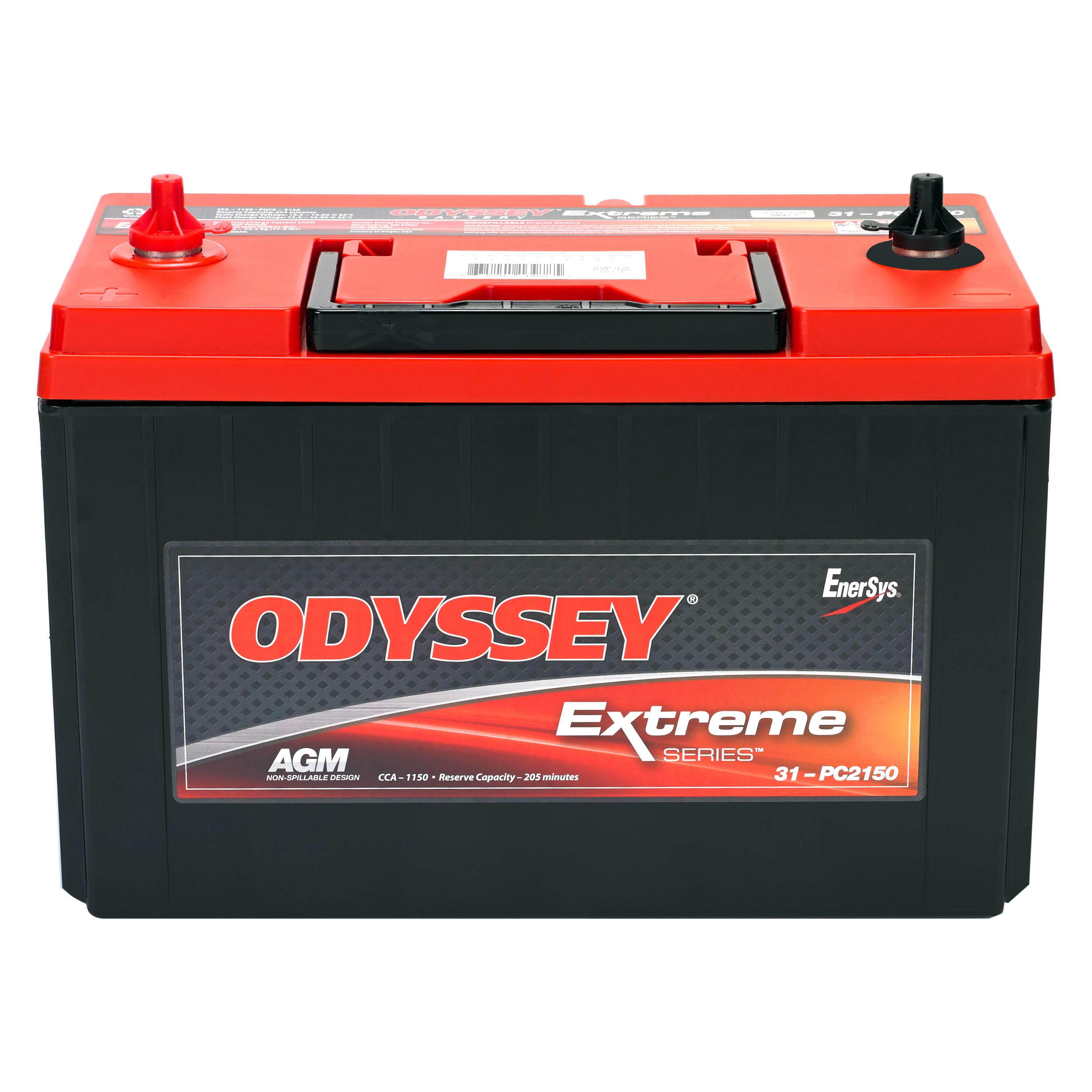

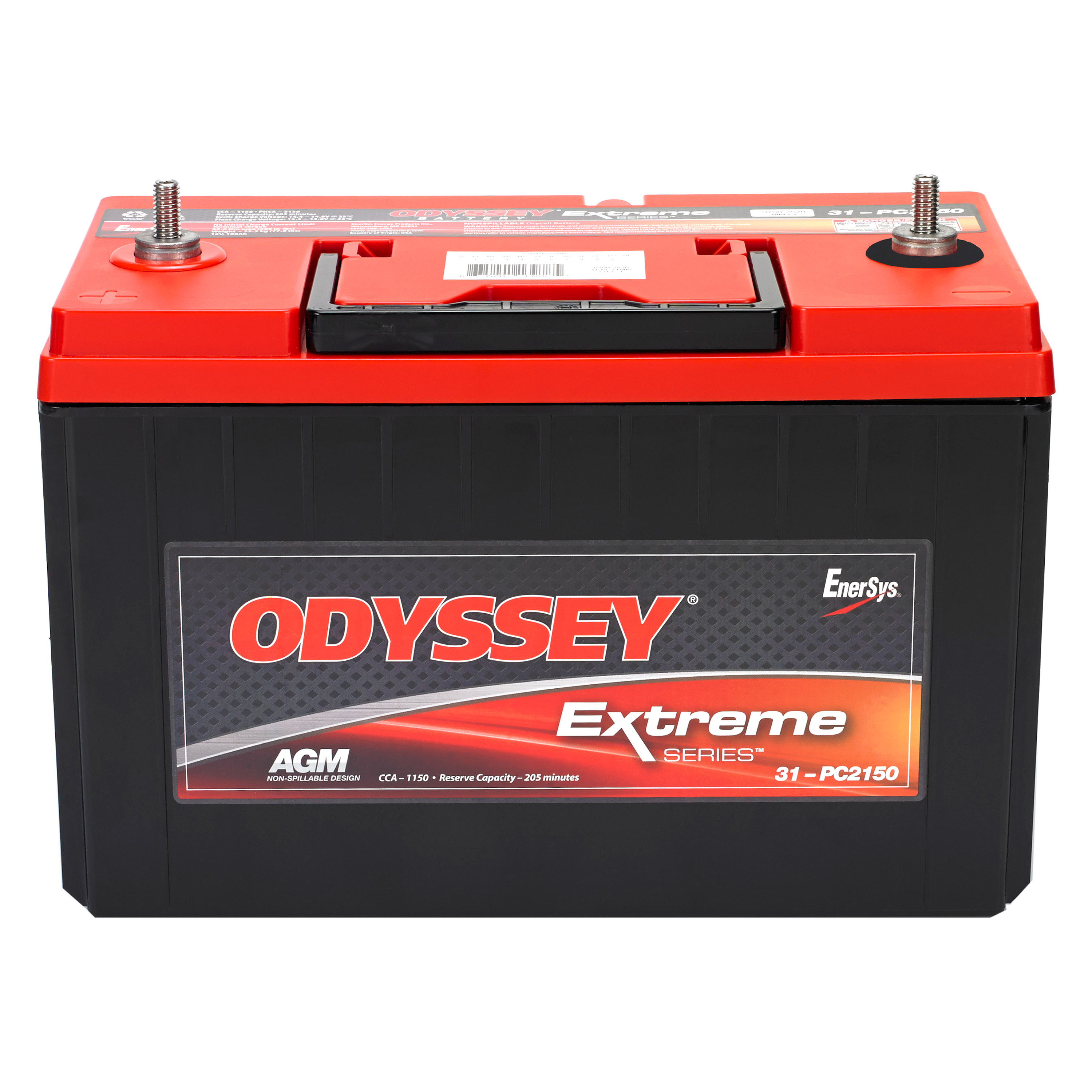

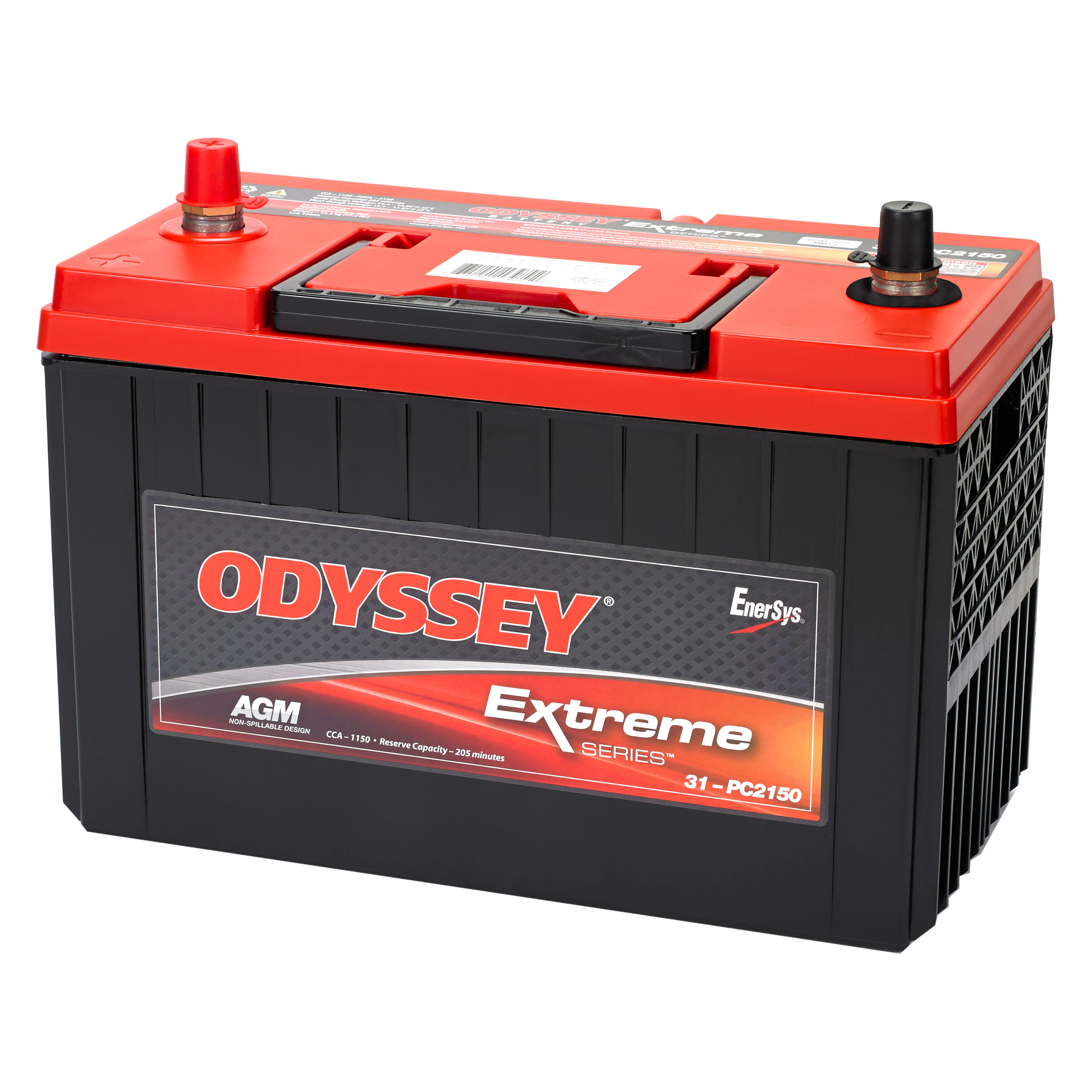

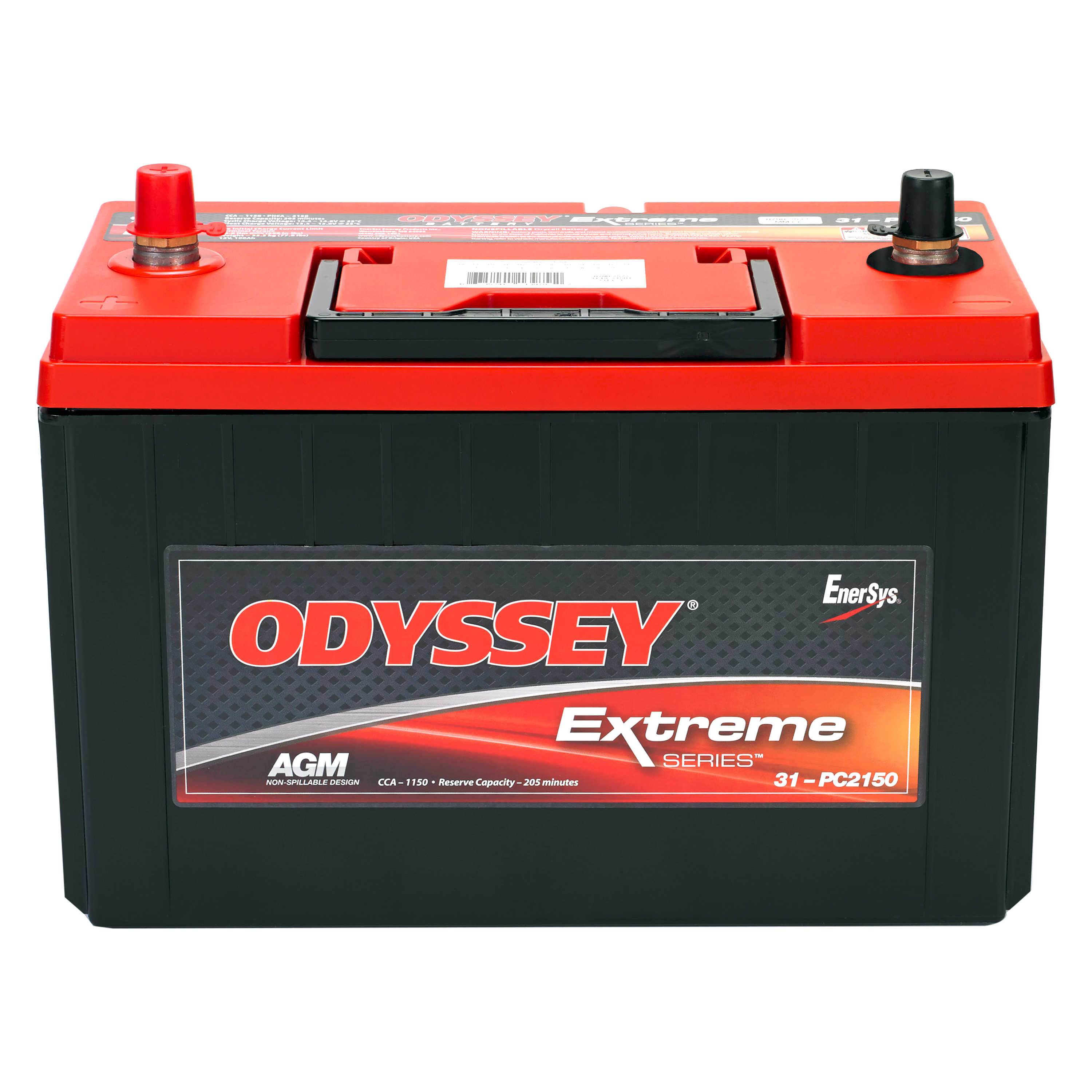

Odyssey® ODX-AGM31 - Extreme Series™ Battery

7 reviews|Item # mpn4700606058|Similar Products
Vehicle Specific
  • Please Select Vehicle
Change Vehicle
Notes:
  • Due to Manufacturer Restrictions this product cannot be sold internationally and/or shipped by air.
Authorized Dealer
$528.99Core Deposit: $23.00
In Stock (112)
Authorized Dealer
Have a Question? Ask a Specialist
888-903-4343Live Chat

Vehicle Fitment

MakeModelYear
Advance MixerAdvance Mixer 2000-2006
Glider 1994-1995, 1997
M 1996-1999
S 1988-1990, 1992-1993, 1995-1998
AutocarACL 1988
AT 1983-1986, 1988
DK 1983-1988
DS 1988
S 1983
Xpeditor 2002-2017
Xpert 2012, 2014-2016
Xspotter 2010-2017
Blue BirdAll American FE 1989, 1997-2017
All American RE 1997-2017
Commercial Bus 1997-2007
SHL All American 2004, 2017
SHL Commercial 1997-2007
SHL TC2000 1997-2000, 2002-2003
TC1000 1997-2000
TC2000 1997-2004
Vision 2004-2018
Wanderlodge 1997-2007
CaterpillarCT Series 2012-2017
ChevyB-Series 1980-1991, 1993-2002
Kodiak 1985, 1987-2009
T-Series 1997-2002, 2004-2009
W-Series 1995-2010
Diamond ReoC116 1990-1992
C120 1997-1998
Emergency OneEmergency One 1997-2016
FordL-Series 1989, 1993, 2006-2010
Freightliner108SD 2012-2017
114SD 2012-2017
Argosy 1999-2012, 2014-2015
B2 2005-2017
Cascadia 2008-2017
Century 1996-2011
Classic 2001-2011
Columbia 2000-2015
Condor 2001-2007
Coronado 2001-2016
FB65 2001-2006
FC 1999-2005
Fl-series 1991-2006
FLC 1985-2001
FLD 1990-2012
FS65 2005-2008
M2 2002-2017
MB 1992-1994
MT 1997-2017
XB Chassis 2005-2017
XB Line 1995-2005, 2009-2015
XB Raised Rail 2005-2008
XC 2001-2017
GMCB-Series 1980-1991, 1993-2002
Brigadier 1981-1983
T-Series 1997-2002, 2004-2008
Topkick 1988-2009
W-Series 1995-2010
Hino145 2005-2010
155 2013
165 2005-2010
185 2005-2010
195 2012-2017
198 2011-2017
238 2005-2014
258 2006-2017
268 2005-2017
308 2005-2008
338 2005-2017
358 2008-2017
FA 1989-2004
FB 1987-2004
FD 1986-2004
FE 1984-2004
FF 1984-2002, 2004
FFC1 1987-1988
FG 1984-1985
GC 1990-1992
SF 1988-1991
SG 1986-2004
IC Corporation3200 2007
1652 SC 2003-2007
3300 Chassis 2005
International1724 1979-1982
1754 1979-1982
1824 1979-1983
1854 1979-1983
1954 1979-1983
1955 1979-1983
2155 1979-1983
2275 1979-1983
2554 1979-2002
2574 1979-1983, 1997-2003
2575 1979-1983
2654 1989-2002
2674 1979-1983, 1989-2003
3000 1996-2002, 2005
3200 2002-2011
3300 2005-2011
3400 1996-2002
3600 1992-1999, 2001
3800 1990-2004
4700 1990-2005
4800 1990, 2001
4900 1990-2005
5000 1997-2000, 2002
7100 1990
7300 2002-2016
7400 2002-2017
7500 2002-2016
7600 2003-2007, 2009-2017
7700 2005-2007
8100 1990, 1997-2003
8500 2002-2007
9100 1998-2003
9200 1995-2011
9300 1985-1988, 1997-2000
9400 1990-2011
9600 1989-1996
9700 1989-1996
9900 1999-2017
1452SC 1987
1552SC 1996-1998, 2002
1924 S 1979-1982
1925 S 1979-1982
2276 S 1983
2375 S 1983
3900FC 1991
8600 SBA 2003-2007
9800 SBA 1996-1999
Cargostar 1980-1982, 1984
DuraStar 2002-2017
F1924 1979-1981
F1954 1979-1983
F2275 1979-1983
F2276 S 1983
F2375 S 1983
F2554 1979-1982
F2574 1979-1983
F2575 1979-1983
F2654 1980-1983
F2674 1979-1983
F9370 1985-1987
LoneStar 2009-2017
PayStar 1999-2014
ProStar 2008-2017
S Series 1980-1983
TerraStar 2014-2017
TranStar 2008-2015
WorkStar 2008-2014
IsuzuEVR 1987-1993
F-Series 1987-2011
H-Series 2005-2008
MR 1985
N-Series 1986-2016
Kenworth548 1985
13-210 1988-1989
22-210 1989
C Series 1981-1996, 1998-2000
K100 1982-1985, 1997-2000
K130 1987-1993
K150 1990-1994
K200 1993
K220 1988-1992, 1994
K300 1993-1998
L700 1981-1983
T2000 1997-2000
T300 1995-2003
T400 1984, 1989-1999
T450 1993-1997
T600 1997-2000
T800 1987-2001
W900 1981-2000
MackCL 1997-2007
DM Series 1997-2006
Granite Series 2001-2017
LE Series 1997-2016
Midliner Series 1980-2001
MR 1997-2007
MRU 2008-2017
Pinnacle Series 1989, 1997-2017
R Series 1997-2005, 2007
Titan Series 2010-2015
Marmon Herrington103P 1997
103PA 1997
125P 1997
57L 1986-1987
57P 1984-1985, 1997
MercedesL-Series 1987
Mitsubishi FusoCanter 2012-2016
FE 1987-2011
FG 1990-1993, 1998-2011
FH 1988-2004
FK 1986-2011
FM 1986-2011
OttawaYT30 1988-2005
YT50 1989-2005
YT50 ROLOC 1998-1999
YT60T 1988, 1990-1992, 1995-2005
Peterbilt200 1972-1978, 1993, 1998-2000
210 2008-2015
220 2007, 2010, 2013-2017
224 1987
270 2001-2003
320 1987-2017
325 2008-2015
330 1996-2005, 2007-2015
335 2005-2010
337 2010-2017
340 2007-2010
348 2010-2017
357 1986-2008
362 1981-2006
365 2008-2017
367 2008-2017
372 1997
376 1999
377 1994-2001
378 1988-2007
379 1987-2007
382 2011-2017
384 2008-2015
385 1997-2008
386 2006-2015
387 2000-2011
388 2008-2015
389 2008-2017
567 2014-2017
579 2013-2017
587 2011-2017
Seagrave Fire ApparatusH 2006
J 1997-1998, 2000-2004
L 1997-1999, 2001-2003
S 2004
T 1997-2006
Sterling360 2007-2010
A9500 1999-2010
Acterra 2001-2010
AT9500 1999-2008
Bullet 45 2008-2010
Bullet 55 2008-2010
Car Hauler 2005, 2007-2009
Condor 2001-2007
L7500 1999-2010
L7501 1999-2001
L8500 1999-2010
L9500 1999-2010
LT7500 1999-2008
LT8500 1999-2008
LT9500 1999-2008
SC7000 1999-2003, 2006
SC8000 1999-2007
ST9500 1999-2003
VolvoWC 1996
WG 1996-2001
WH 1996
WI 1996
WX 1996
Western Star3700 2000-2001
3800 1997, 1999-2001
4800 1997-2002
4900 1997-2017
5700 2016-2017
5800 1997-2002
5900 1997-2001
6900 1997-2016
WhiteWCA 1988
WX 1987-1988

Product Details

Extreme Series™ Battery (ODX-AGM31) by Odyssey®. Battery Type: AGM. Cold Cranking Amperage: 1150. Polarity: Straight. Reserve Capacity: 205. Voltage: 12V. 1 Piece. With SS 3/8" Threaded Stud Terminals. Some batteries offer enormous cranking power. Others, deep cycle reserve power. Unbeatable Odyssey Extreme™ batteries do both. Even at very low temperatures, Odyssey Extreme Series batteries have the power to provide engine-cranking pulses double to triple that of equally sized conventional batteries. And they can handle 400 charge-discharge cycles to 80% depth of discharge. Extreme Series batteries are made with flat plates made of 99.99% pure lead – not lead alloy.

Notes

  • Due to Manufacturer Restrictions this product cannot be sold internationally and/or shipped by air.

Specifications

10 hour capacity ah: 92
20 hour capacity ah: 100
Cold Cranking Amps (CCA): 1150
HCA: 1545
Height inches (mm): 9.41 (239.0)
Internal resistance (milli-ohms): 2.2
Length inches (mm): 13.0 (330.2)
MCA: 1370
Nominal Voltage: 12V
Pulse (5-second) Hot Cranking Amps (PHCA): 2150
Replacement: BCI group 31
Reserve Capacity Minutes: 205
Reserve minutes @25amps: 205
Short Circuit Current: 5000A
Terminal Torque in-lbs (nm): 150-200 (16.9-22.6)
Terminals: 3/8" Stud or SAE
Type: AGM
Weight pounds (lbs)(kg): 77.8 (35.3)
Width(mm): 172.7

Features

  • 70% longer cycle life than conventional deep cycle batteries - high stable voltage for longer periods of time
  • Can be stored on open circuit (nothing connected to the terminals) without recharging for up to 2 years or 12.00V, whichever occurs first
  • The highest recharge efficiency of any sealed lead battery on the market - capable of 100% recharge in 4-6 hours
  • Non-spillable design - can be mounted on any side in any position except inverted
  • Design protects against high impact shock and mechanical vibration - a common cause of premature battery failure
  • Operating temperatures from -40°C (-8°F) to 45°C (77ºF), for models without a metal jacket, and from -40ºC (-8ºF) to 80ºC (112ºF) for models with a metal jacket
  • No need to add water, ever! Drycell design with resealable venting system
  • US Department of Transportation classified as a ‘non-spillable’ battery. No acid spills, no escaping gases

Installation

More Odyssey battery plates mean more plate surface area. And that means more power - twice as much as conventional batteries. Like many popular spiral-wound batteries, Odyssey Extreme Series batteries employ dry cell Absorbed Glass Mat (AGM) technology to contain acid, allowing the battery to be installed even on its side. But the densely packed flat plates in an Odyssey Extreme Series battery avoid the “dead space” between cylinders in a “six pack” design. The result is 15% more plate surface area - and that translates to more power!

Odyssey is here with excellent products that are available at a competitive price. The company does its utmost to provide the best possible solutions for your needs. All products by Odyssey are made with expert care and created by professionals to meet all your requirements. The company does not accept compromises when it is going about quality, so you can be sure that all products have only first-rate quality. With many years of manufacturing experience, Odyssey is the name you can trust.

Odyssey® is a global leader in stored energy solutions for automotive, military and industrial applications. With manufacturing facilities in 17 countries, sales and service locations throughout the world, and over 100 years of battery experience, Odyssey is a powerful partner for automotive, marine, heavy duty equipment and powersports service and parts providers. Odyssey batteries are manufactured to strict quality standards in two facilities globally: Warrensburg, Missouri USA and Newport, Wales United Kingdom.

Brand:
Part Number:
ODX-AGM31
UPC:
635241140453
Alternate MPN:
ODXAGM31

Reviews

(7)
Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
Odyssey® ODX-AGM31 - Extreme Series™ Battery
/5
1-7 of 7 Reviews
5 of 5
GREAT BATTERY
Odyssey® - Extreme Series™ Battery
I have a 1999 GMC YUKON this Battery is perfect for my needs. I have plenty of Electrical needs and the Engine cranking power.
Posted by Aaron / March 16, 20231999 GMC Yukon
5 of 5
Excellent Battery
Odyssey® - Extreme Series™ Battery
This battery lives up to its name. It power’s my 24 inch light bar and my 40 inch roof mounted light bar I can’t say it enough great battery.
Posted by Christopher (Red Hook, NY) / May 01, 20222008 Jeep Liberty
5 of 5
Couldn’t Be More Pleased
Odyssey® 65-PC1750T - Extreme Series™ Battery
I went with the $300 battery over the $150 to have the extra security for our strong winter. I am very glad I did. Product was well packaged, unopened new, arrived promptly, fully charged. It fit in the car perfectly. TRUCKiD did a great, very professional job. Installation on my car was very easy. I know some cars are not easy. The battery I replaced was a $150 one that blew out after only two years.
Posted by Thomas (Saratoga Springs, NY) / November 30, 20192007 Chrysler Aspen
5 of 5
Excellent Battery
Odyssey® 34/78-PC1500DT - Extreme Series™ Battery
Love the battery, looks great, installation was simple.
Posted by Timmy (Hoschton, GA) / March 03, 20191997 Jeep Cherokee
5 of 5
Best Battery Ever!!!
Odyssey® 34R-PC1500T - Extreme Series™ Battery
Other than the fact that it weighs 50 lbs, the battery fit perfectly in my 2006 Nissan Xterra SE 4X4. After installation the charge gauge shows neutral which means that it is powerful enough to simply maintain the charge. When it gets below freezing the battery doesn't even feel it. This is the most powerful battery I've ever used, for sure. I would definitely recommend it to anyone as long as you know it will fit your vehicle, and you can lift 50 pounds.
Posted by Douglas (Irving, TX) / December 11, 20182006 Nissan Xterra
5 of 5
Love The Cold Cranking Amps
Odyssey batteries are the best for amp-hrs, size, weight and price. You can't go wrong. They have always lasted me at least 5 years which is great. I'd recommend to anyone.
Posted by Mark (Midlothian, TX) / November 24, 2017
5 of 5
Power Packed!
Odyssey® 34-PC1500T - Extreme Series™ Battery
Great battery, long life and runs my 12K winch like nothing to it.
Posted by James (Cornish, NH) / October 22, 20172004 Land Rover Discovery

Questions and Answers

(0)
If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!
